| Availability: | In stock |

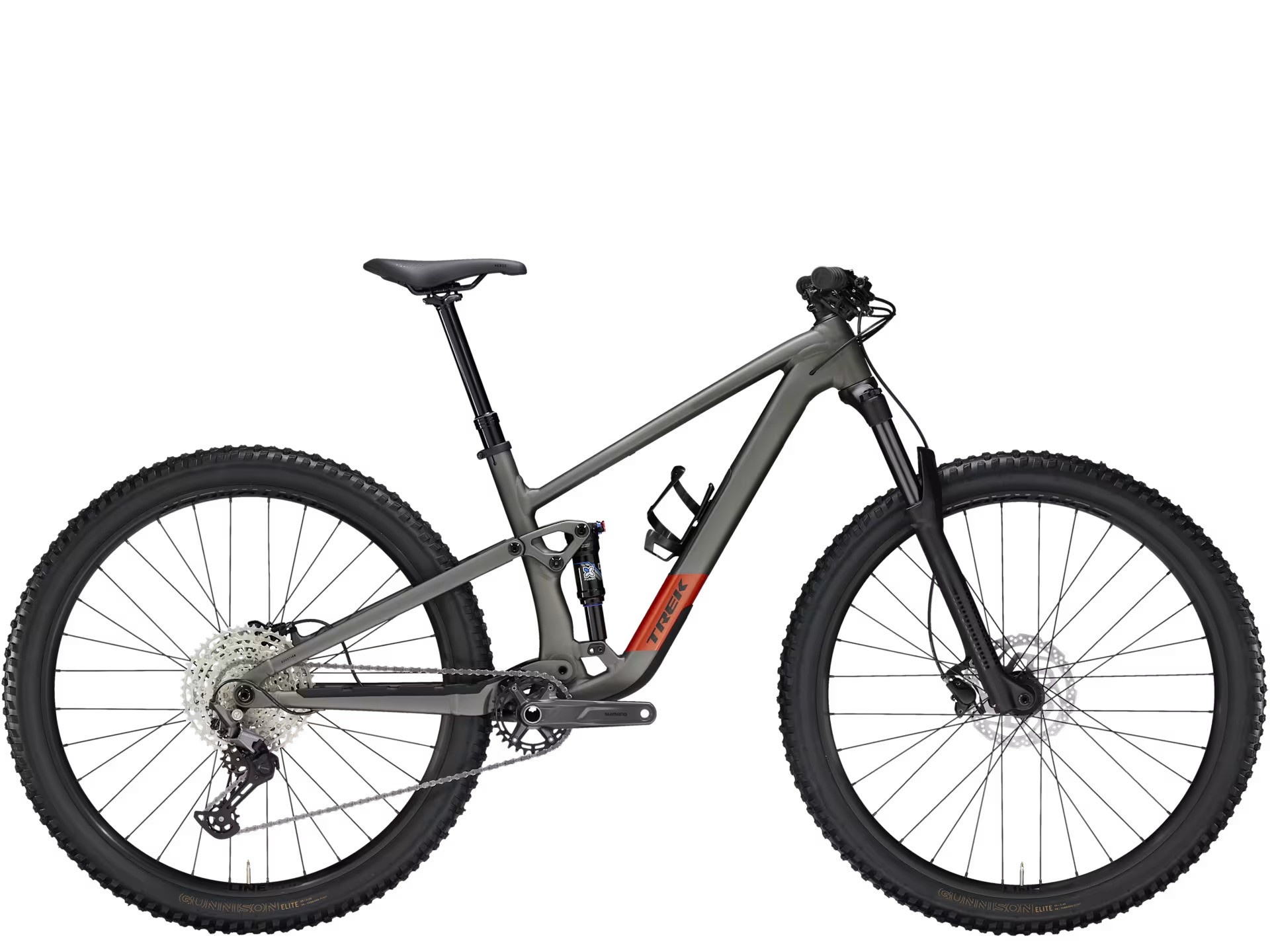

Top Fuel 5 Gen 4 is a nimble alloy trail bike that's ready to hammer up climbs and hold its own on descents – all without breaking the bank. It offers 130mm of front and 120mm of rear suspension that gives you just enough squish to soak up chatter without draining your power on all-day pedal fests. It comes equipped with a RockShox suspension package and Shimano Deore groupset that gives you everything you need to rip in an economical package.
| Frame | Alpha Platinum Aluminum, internal storage, tapered head tube, internal guided routing, downtube guard, alloy rocker link, 4-way Mino Link, ABP, Boost148, 120mm travel |
|---|---|
| Fork | RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 130mm travel |
| Shock | X-Fusion Pro 2, 2-position damper, 185mm x 50mm |
| Max compatible fork travel | 140mm |
| Hub front | Bontrager alloy, 6-bolt, Boost110, 15 mm thru-axle |
|---|---|
| Hub rear | Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle |
| Skewer rear | Bontrager Switch thru axle, removable lever |
| Rim | Bontrager Line TLR 30, Tubeless Ready, 32-hole, Presta valve |
| *Tire | Size: S Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 27.5x2.40'' |
| Size: M, ML, L, XL Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29x2.40'' |
|
| Tire part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip | Bontrager TLR |
| Max tire size | Frame: 29x2.50", Fork: See manufacturer |
| Shifter | Shimano Deore M6100, 12 speed |
|---|---|
| Rear derailleur | Shimano Deore M6100, long cage |
| Crank | Shimano MT512, 30T ring, 55mm chainline, 170mm length |
| Bottom bracket | Shimano BB-MT501 BSA |
| Cassette | Shimano Deore M6100, 10-51, 12 speed |
| Chain | Shimano Deore M6100, 12 speed |
| Max chainring size | 1x: 34T, min 30T |
| Saddle | Bontrager Verse Short, stainless steel rails |
|---|---|
| *Seatpost | Size: S TranzX JD-YSI22, 100mm travel, internal routing, 34.9mm, 342mm length |
| Size: M, ML, L, XL TranzX JD-YSI22, 170mm travel, internal routing, 34.9mm, 489mm length |
|
| Handlebar | Bontrager alloy, 31.8mm, 15mm rise, 750mm width |
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| Stem | Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length |
| Brake | Shimano MT200 hydraulic disc |
| Brake rotor | Shimano RT26, 6-bolt, 180mm |
| Rotor size | Max brake rotor sizes - Frame: 200mm, min 180mm, Fork: see fork manufacturer |
| Weight | M - 15.90 kg / 35.06 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
