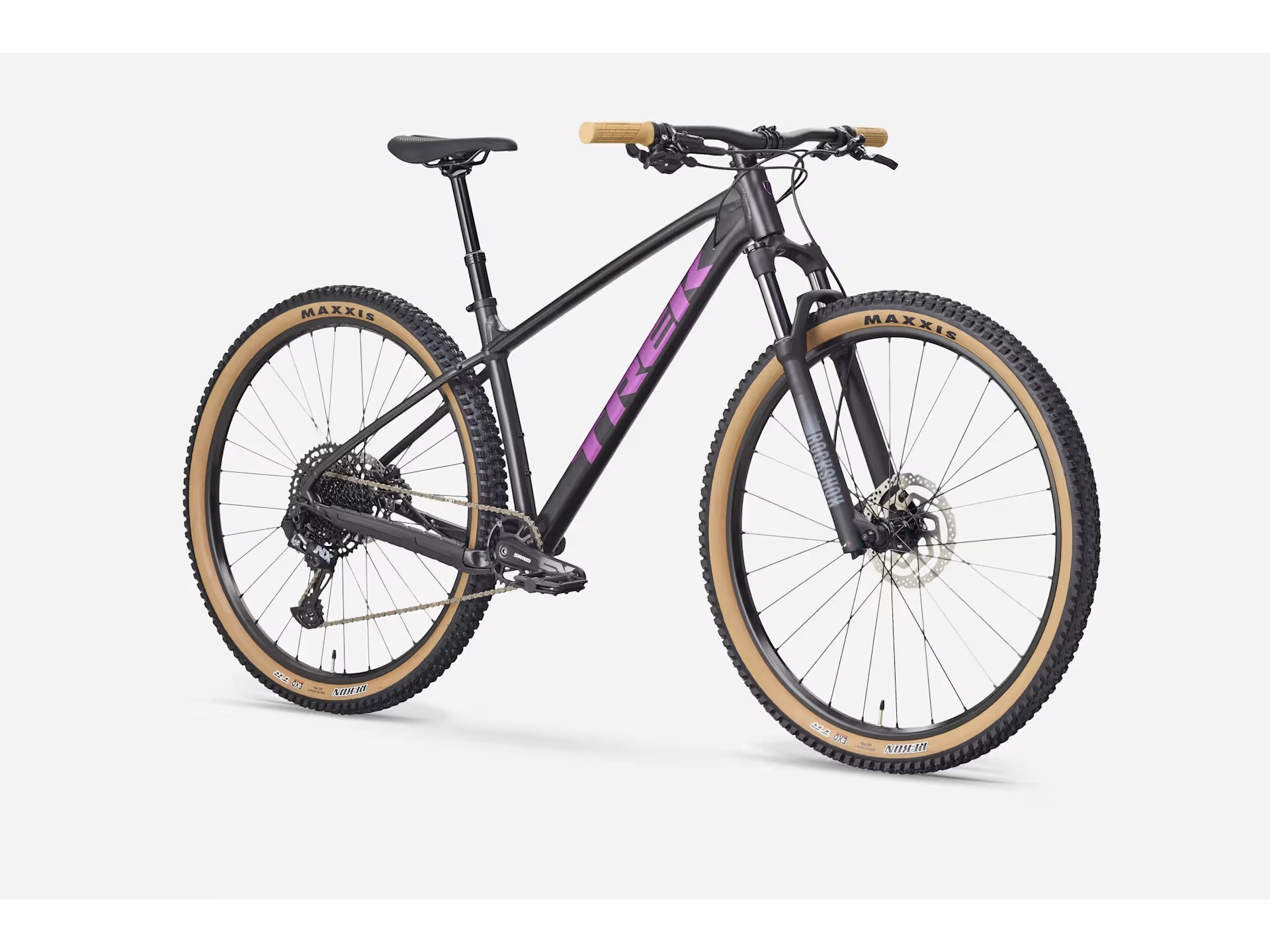

Marlin 7 is a confidence-boosting trail bike that’s just as comfortable on your daily ride as it is deep in the woods. It finds the perfect balance between price and performance with a RockShox suspension fork that makes quick work of rocks and bumps in your path, and tons of gears from the SRAM NX Eagle 12-speed drivetrain.
- *Frame
-
Size: XS
Alpha Silver Aluminum, curved top tube, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
Size: S , M , ML , L , XL , XXL
Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
- *Fork
-
Size: XS , S
RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel
Size: M , ML , L , XL , XXL
RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 46mm offset for 29'' wheel, 100mm QR, 100mm travel
- Hub front
-
Formula DC-20 LW, alloy, 6-bolt, 100x5mm
- Skewer front
-
- Hub rear
-
Formula DC-22LW, 6-bolt, Shimano 8/9/10 freehub, 135x5mm
- Skewer rear
-
- *Rim
-
Size: XS , S , M , ML , L , XL , XXL
Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve
- *Tire
-
Size: XS , S
Maxxis Rekon, tubeless ready, EXO casing, folding bead, 60tpi, 27.5x2.40''
Size: M , ML , L , XL , XXL
Maxxis Rekon, tubeless ready, EXO casing, folding bead, 60tpi, 29x2.40''
- Rim strip
-
- Shifter
-
- Rear derailleur
-
- *Crank
-
Size: XS , S , M
SRAM SX Eagle, 30T steel ring (49mm chainline), 170 mm length
Size: ML , L , XL , XXL
SRAM SX Eagle, 30T steel ring (49mm chainline), 175 mm length
- Bottom bracket
-
Truvativ Powerspline, 73mm, threaded cartridge, 118mm spindle
- Cassette
-
SRAM PG-1210 Eagle, 11-50, 12 speed
- Chain
-
- Pedal
-
- Saddle
-
- *Seatpost
-
Size: XS , S
TranzX JD-YSI34, 100mm travel, internal routing, 31.6mm, 350mm length
Size: M
TranzX JD-YSI34, 125mm travel, internal routing, 31.6mm, 405mm length
Size: ML , L
TranzX JD-YSI34, 150mm travel, internal routing, 31.6mm, 456mm length
Size: XL , XXL
TranzX JD-YSI34, 170mm travel, internal routing, 31.6mm, 500mm length
- *Handlebar
-
Size: XS
Bontrager alloy, 31.8mm, 5mm rise, 690mm width
Size: S
Bontrager alloy, 31.8mm, 15mm rise, 720mm width
Size: M , ML , L , XL , XXL
Bontrager alloy, 31.8mm, 15mm rise, 750mm width
- Grips
-
- *Stem
-
Size: XS , S
Bontrager Comp, 31.8mm, 7 degree, 35mm length
- Headset
-
- Brake
-
Shimano MT200 hydraulic disc
- *Brake rotor
-
Size: XS , S , M , ML , L , XL , XXL
Shimano RT26, 6-bolt, 160mm
Size: M , ML , L , XL , XXL
Shimano RT26, 6-bolt, 180mm
- Brake Set
-
- Weight
- M - 14.15 kg / 31.2 lbs
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
