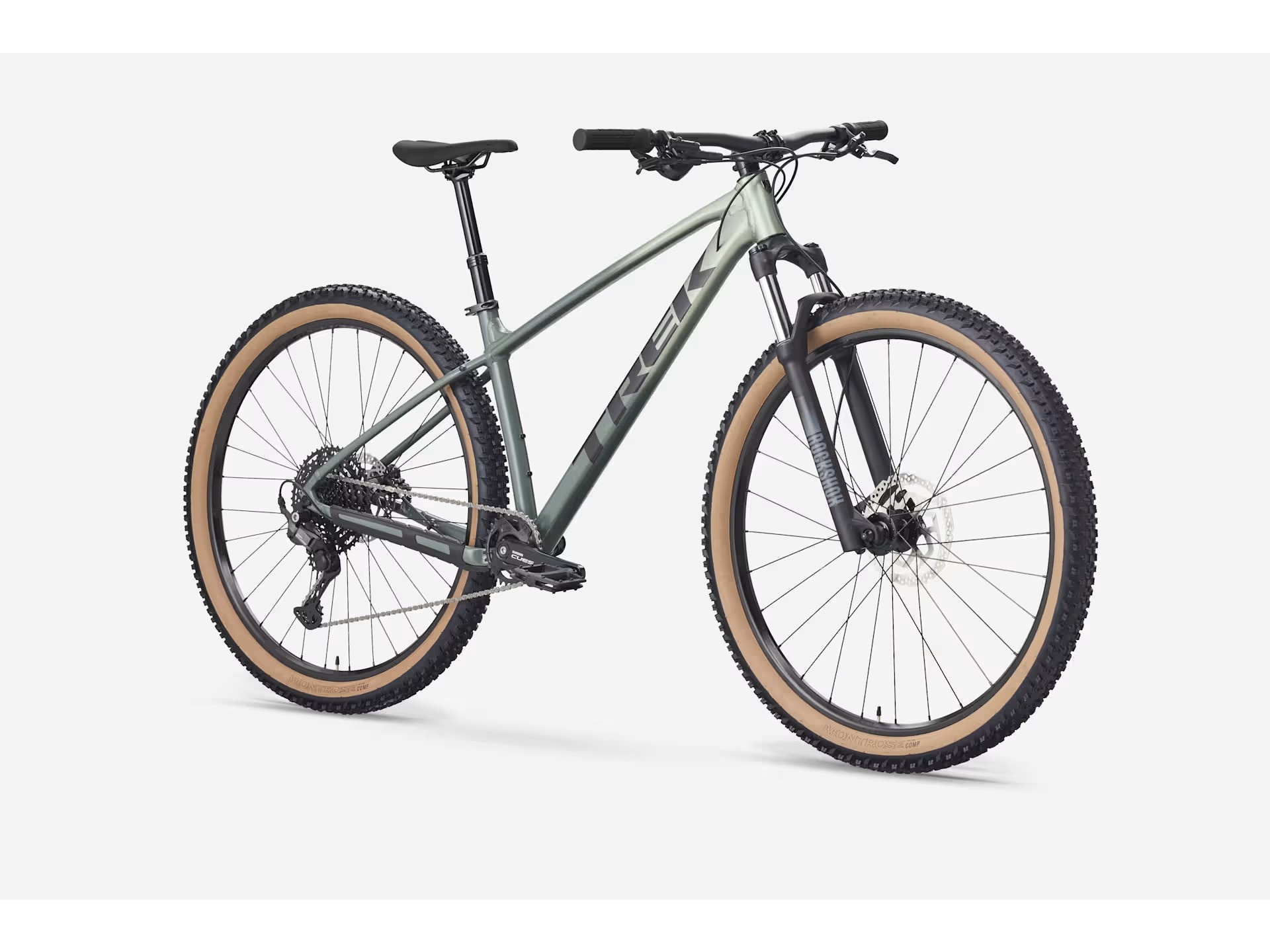

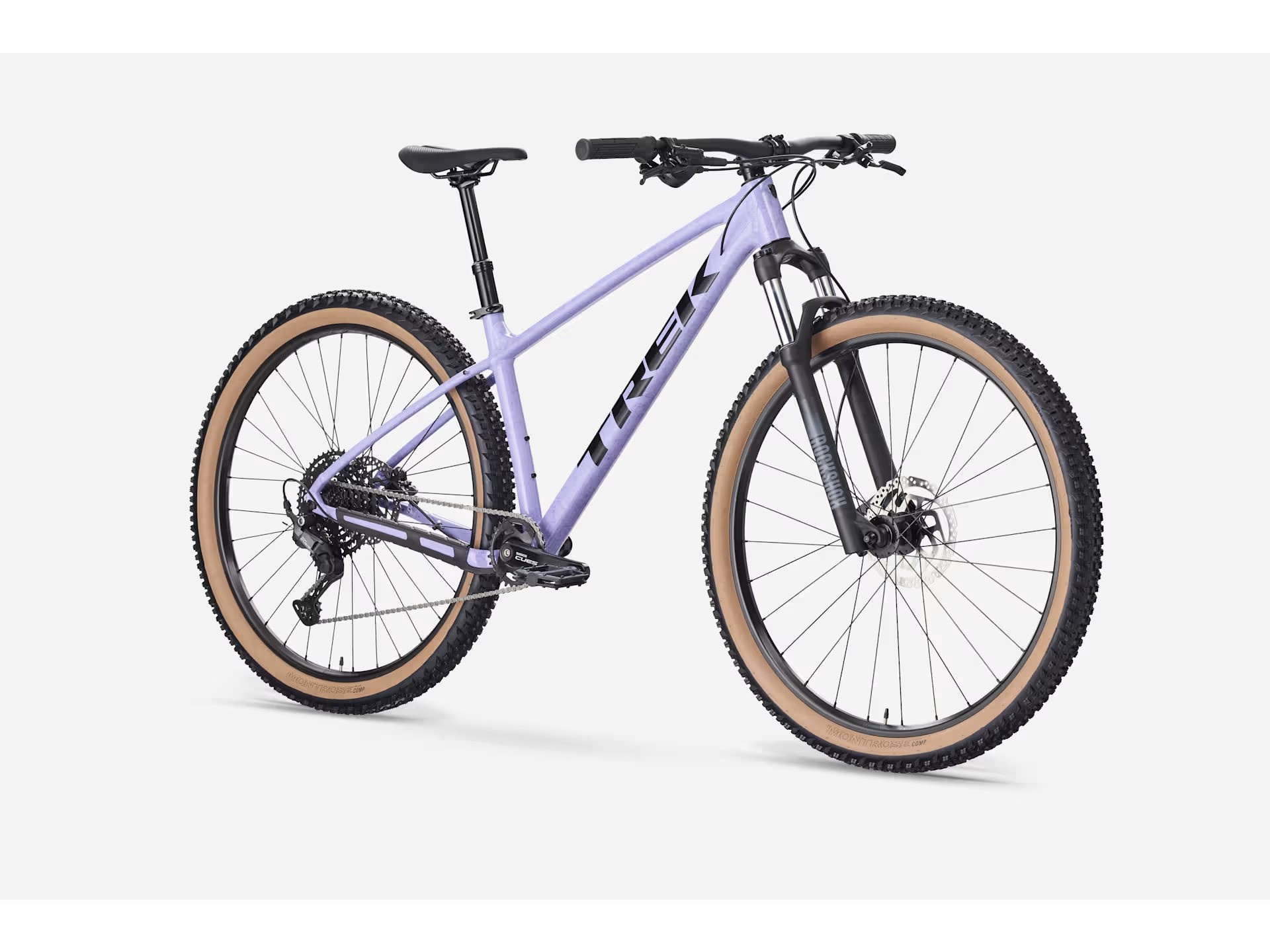

Marlin 6 is the perfect ride for progressing your skills on the trails. Its updated slacker frame geometry makes it easier to control on descents while the suspension fork takes the edge off bumpy trails. Integrated rack and kickstand mounts make it easy to add accessories to this versatile steed.
- *Frame
-
Size: XS
Alpha Silver Aluminum, curved top tube, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
Size: S , M , ML , L , XL
Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
- *Fork
-
Size: XS , S
RockShox Judy, coil spring, preload, TurnKey lockout, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel
Size: M , ML , L , XL
RockShox Judy, coil spring, preload, TurnKey lockout, 46mm offset for 29'' wheel, 100mm QR, 100mm travel
- Hub front
-
Formula DC-20, alloy, 6-bolt, 100 mm
- Skewer front
-
- Hub rear
-
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm
- Skewer rear
-
- *Rim
-
Size: XS , S , M , ML , L , XL
Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve
- *Tire
-
Size: XS , S
Bontrager Montrose comp, wire bead, 30 tpi, 27.5x2.40"
Size: M , ML , L , XL
Bontrager Montrose comp, wire bead, 30 tpi, 29x2.40"
- Rim strip
-
- Shifter
-
- Rear derailleur
-
- *Crank
-
Size: XS , S , M , ML
Shimano U4000, 30T chainring, 170mm length
Size: L , XL
Shimano U4000, 30T chainring, 175mm length
- Bottom bracket
-
Shimano, 73mm, threaded cartridge, 122.5mm spindle
- Cassette
-
Shimano CUES LG300, LINKGLIDE, 11-48, 10 speed
- Chain
-
- Pedal
-
- Saddle
-
Bontrager Verse Short, stainless steel rails
- *Seatpost
-
Size: XS , S
TranzX JD-YSI34, 100mm travel, internal routing, 31.6mm, 350mm length
Size: M
TranzX JD-YSI34, 125mm travel, internal routing, 31.6mm, 405mm length
Size: ML , L , XL
TranzX JD-YSI34, 150mm travel, internal routing, 31.6mm, 456mm length
- *Handlebar
-
Size: XS
Bontrager alloy, 31.8mm, 5mm rise, 690mm width
Size: S
Bontrager alloy, 31.8mm, 15mm rise, 720mm width
Size: M , ML , L , XL
Bontrager alloy, 31.8mm, 15mm rise, 750mm width
- Grips
-
- *Stem
-
Size: XS , S
Bontrager Comp, 31.8mm, 7 degree, 35mm length
- Headset
-
- Brake
-
Shimano MT200 hydraulic disc
- *Brake rotor
-
Size: XS , S , M , ML , L , XL
Shimano RT26, 6-bolt, 160mm
Size: M , ML , L , XL
Shimano RT26, 6-bolt, 180mm
- Brake Set
-
- Weight
- M - 15.00 kg / 33.07 lbs
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
