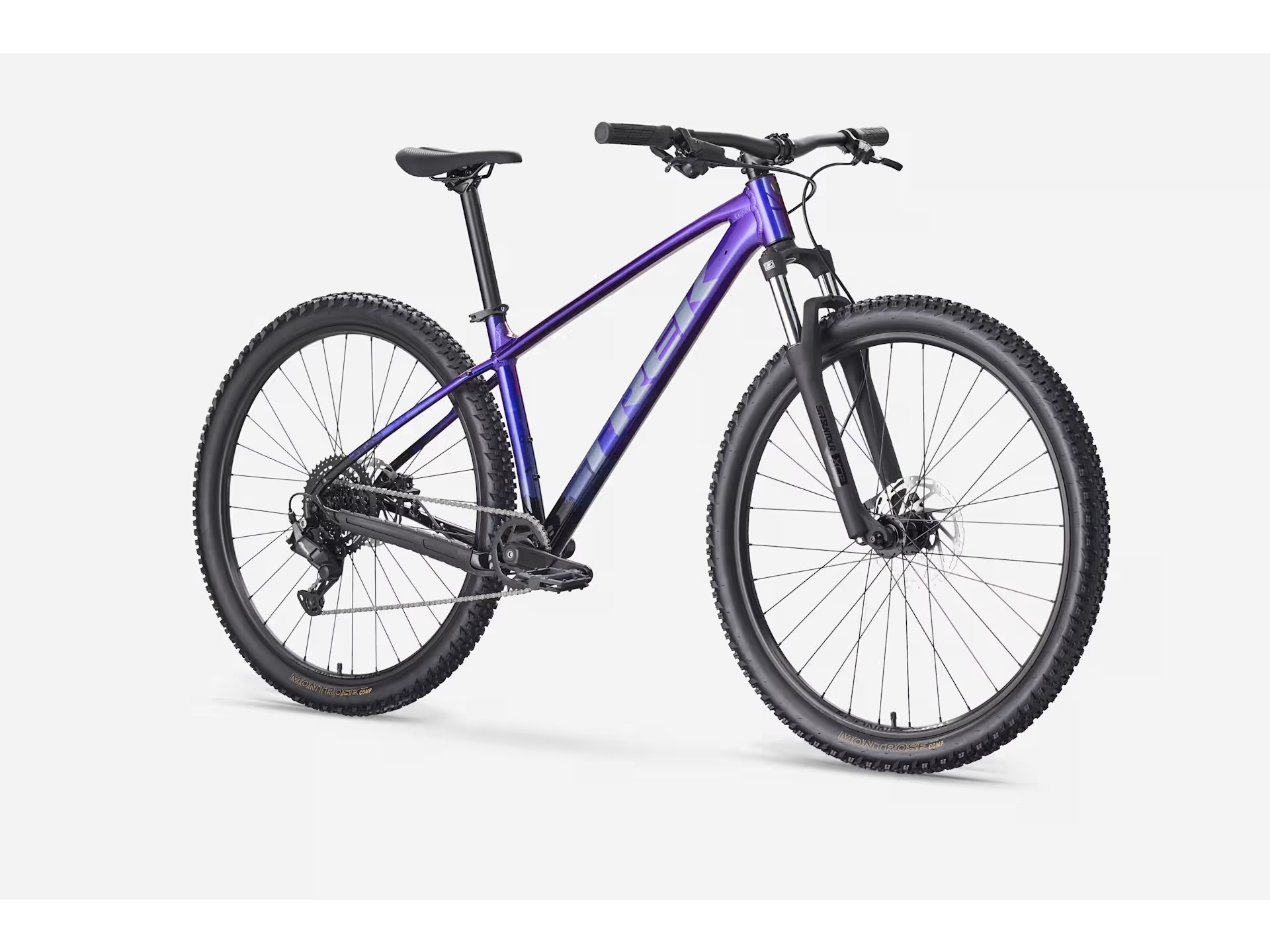

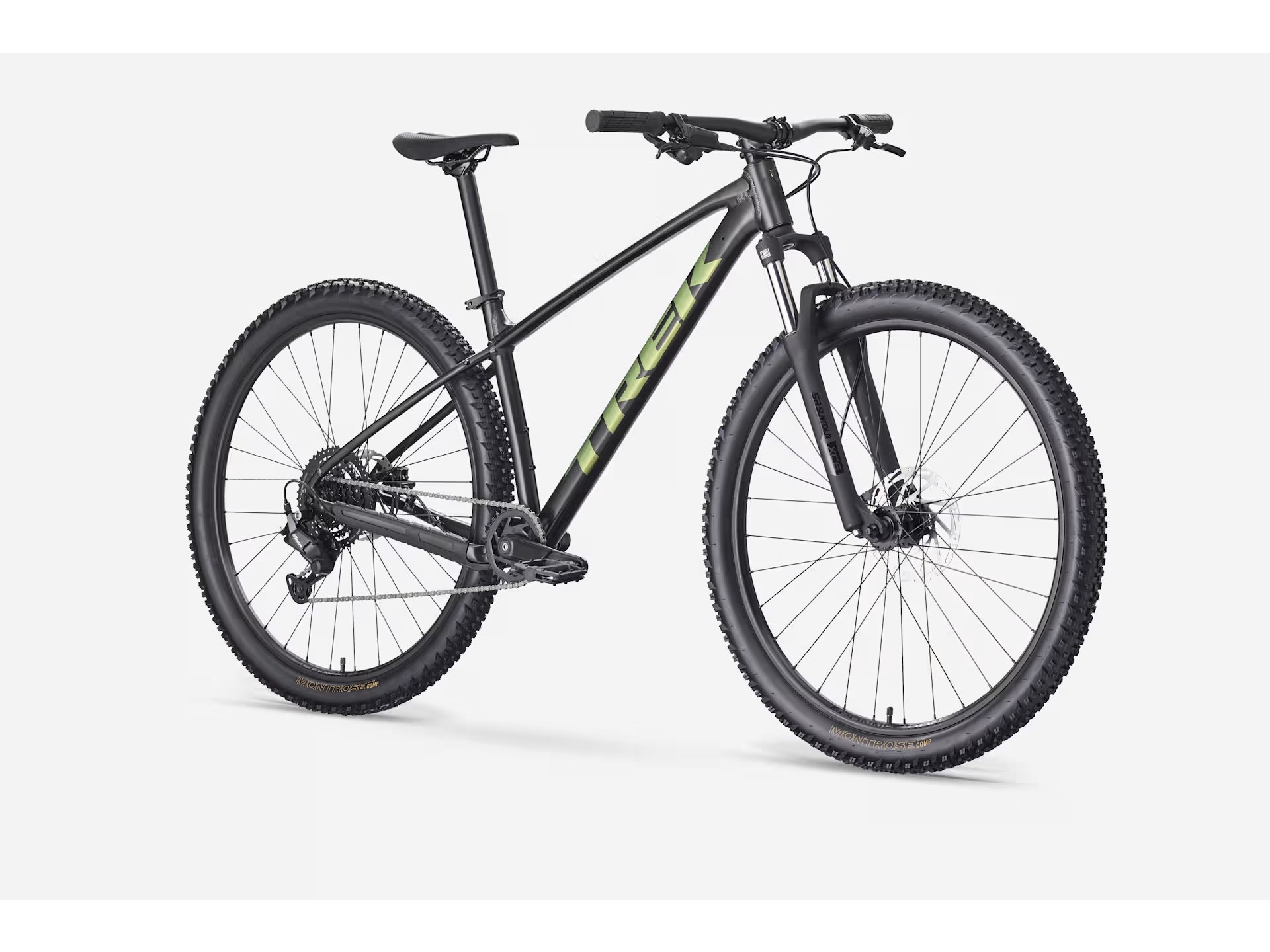

Marlin 4 is a trail-worthy daily rider built for everything from weekday commutes to weekend adventures. It features a stable frame with a suspension fork to smooth rough paths, plus 8-speed Shimano ESSA shifting and mounts for racks and a kickstand. Whether you're rolling to class, work, or the trailhead, Marlin 4 brings the comfort and confidence of a commuter with the ruggedness of a real mountain bike.
- *Frame
-
Size: XXS , XS
Alpha Silver Aluminum, curved top tube, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
Size: S , M , ML , L , XL
Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
- *Fork
-
Size: XXS
SR Suntour XCM 30, coil spring, preload, hydraulic lockout, 42mm offset for 26" wheel, 100mm QR, 100mm travel
Size: XS
SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travel
Size: S
SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel
Size: M , ML , L , XL
SR Suntour XCE 28, coil spring, preload, 46mm offset for 29'' wheel, 100mm QR, 100mm travel
- Hub front
-
Formula DC-20, alloy, 6-bolt, 100x5mm
- Skewer front
-
- Hub rear
-
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm
- Skewer rear
-
- Rim
-
Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve
- *Tire
-
Size: XXS
Bontrager Montrose Comp, wire bead, 30 tpi, 26x2.35''
Size: XS , S
Bontrager Montrose Comp, wire bead, 30 tpi, 27.5x2.4''
Size: M , ML , L , XL
Bontrager Montrose Comp, wire bead, 30 tpi, 29x2.4''
- Shifter
-
- Rear derailleur
-
- *Crank
-
Size: XXS , XS
ProWheel alloy, 30T narrow-wide steel ring, 160mm length
Size: S , M , ML
ProWheel alloy, 30T narrow-wide steel ring, 170mm length
Size: L , XL
ProWheel alloy, 30T narrow-wide steel ring, 175mm length
- Bottom bracket
-
- Cassette
-
Shimano HG300, 11-45, 8 speed
- Chain
-
- Pedal
-
- Saddle
-
- *Seatpost
-
Size: XXS
Bontrager alloy, 31.6 mm, 12 mm offset, 300 mm length
Size: XS , S , M
Bontrager alloy, 31.6mm, 12mm offset, 330mm length
Size: ML , L , XL
Bontrager alloy, 31.6mm, 12mm offset, 400mm length
- *Handlebar
-
Size: XXS , XS
Bontrager alloy, 31.8mm, 5mm rise, 690mm width
Size: S
Bontrager alloy, 31.8mm, 15mm rise, 720mm width
Size: M , ML , L , XL
Bontrager alloy, 31.8mm, 15mm rise, 750mm width
- Grips
-
- *Stem
-
Size: XXS , XS , S
Bontrager Comp, 31.8mm, 7 degree, 35mm length
- Headset
-
- *Brake
-
Size: XXS , XS , S
Tektro HD-M276 hydraulic disc
Size: XXS , XS , S , M , ML , L , XL
Power BH-M286TF hydraulic disc, 160mm rotor
Size: M , ML , L , XL
Tektro HD-M275 hydraulic disc
Size: M , ML , L , XL
Power BH-M286TF hydraulic disc, 180mm rotor
- *Brake rotor
-
Size: XXS , XS , S , M , ML , L , XL
Tektro, 6-bolt, 160mm
Size: M , ML , L , XL
Tektro, 6-bolt, 180mm
- Weight
- M - 14.90 kg / 32.85 lbs
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
