| Availability: |
Out of stock |

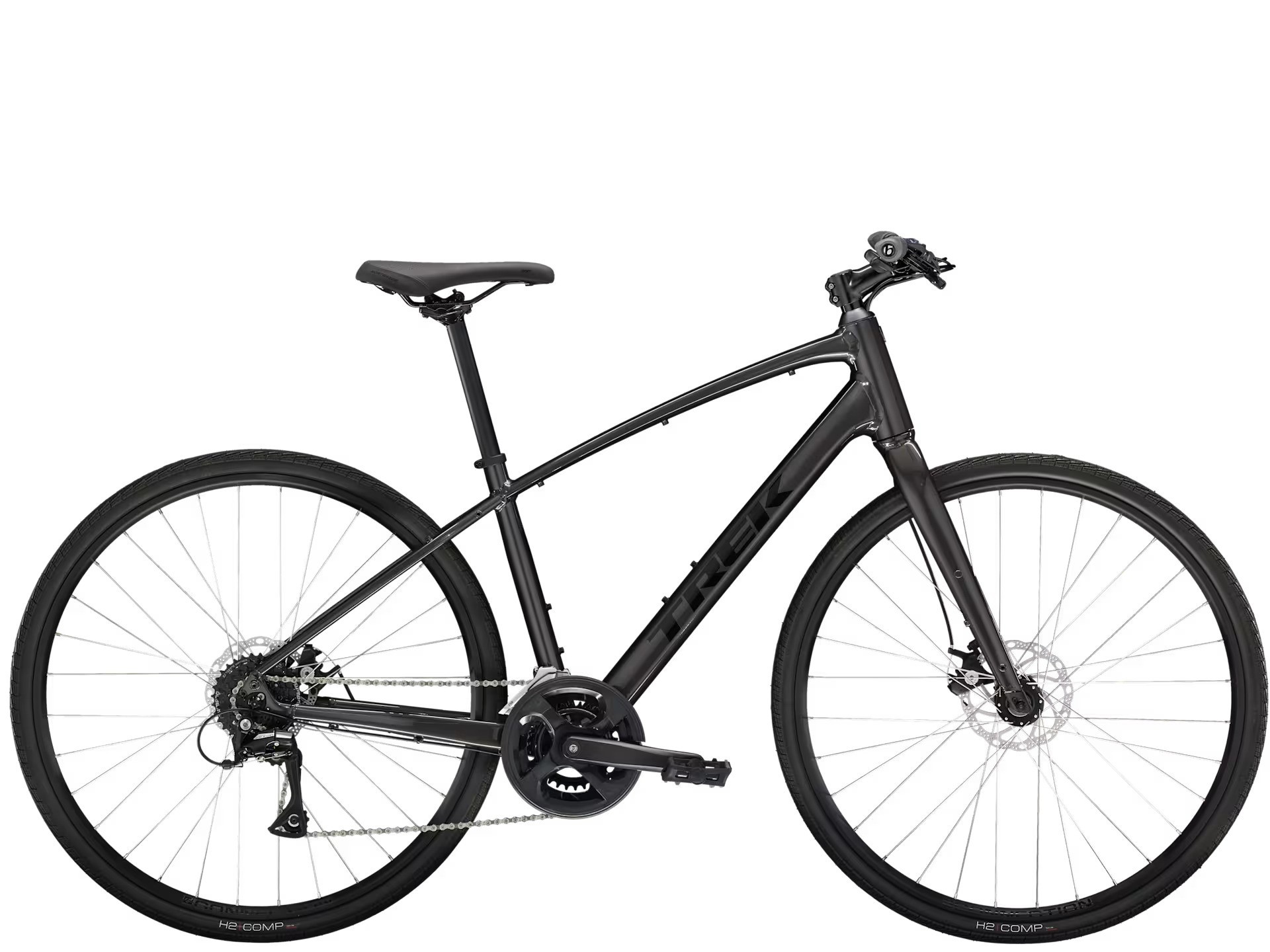

FX 1 is a lightweight aluminum hybrid bike that looks great and feels just as good to ride. It has lots of gears so you can cruise any terrain comfortably, and powerful disc brakes that give you confident stopping power, rain or shine. It's perfect for anyone looking to get out more, do a bit of exercise, or commute to work on a versatile bike backed by a lifetime warranty.
| Hub front |
Formula DC-20, alloy, 6-bolt, 5x100 mm QR |
| Skewer front |
139x5mm bolt-on |
| Hub rear |
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR |
| Skewer rear |
152x5mm QR |
| Rim |
Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve |
| Tire |
Bontrager H2 Comp, wire bead, 30 tpi, 700x35mm |
| Max tire size |
700x40mm |
| *Shifter |
Size: XS, S, M, L, XL
Shimano EF500, 2 speed |
Size: XS, S, M, L, XL
Shimano EF500, 8 speed |
| Front derailleur |
Shimano Tourney TY606, 31.8/34.9mm clamp, top swing, dual pull |
| Rear derailleur |
Shimano Acera M3020-8, 40T max cog |
| Crank |
Forged alloy, 46/30, chainguard, 170 mm length |
| Bottom bracket |
Sealed cartridge, 68mm |
| Cassette |
Shimano HG200, 12-32, 8 speed |
| Chain |
KMC Z8.3 |
| Pedal |
Wellgo nylon platform |
| Max chainring size |
1x: 44T, 2x: 46/32 |
| Saddle |
Bontrager Sport |
| Seatpost |
Bontrager alloy, 27.2mm, 12mm offset, 330mm length |
| *Handlebar |
Size: XS, S, M, L
Bontrager Riser, steel, 25.4mm, 30mm rise, 600mm width |
Size: XL
Bontrager Riser, steel, 25.4mm, 30mm rise, 620mm width |
| Grips |
Bontrager Satellite |
| *Stem |
Size: XS, S, M
Bontrager alloy, 25.4 mm clamp, 10-degree, 90 mm length |
Size: L, XL
Bontrager alloy, 25.4 mm clamp, 10-degree, 110 mm length |
| Brake |
Tektro MD-U310 mechanical disc |
| Brake rotor |
Tektro wave, 6-bolt, 160mm |
| Rotor size |
Max brake rotor sizes: 160mm front & rear |
| Weight |
M - 13.00 kg / 28.67 lbs |
| Weight limit |
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
