| Availability: | In stock |

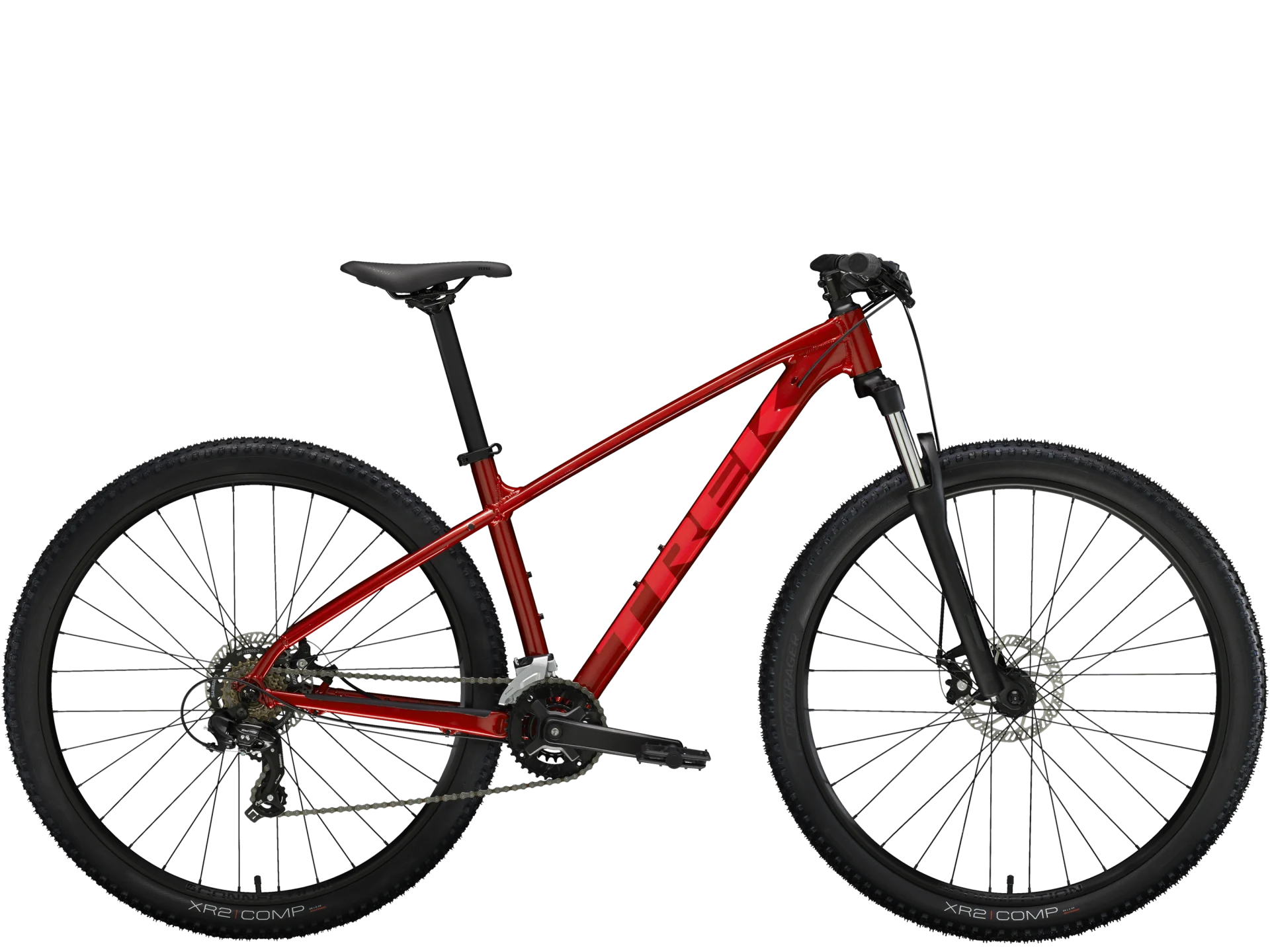

Marlin 4 is the gateway mountain bike that will take you from rail trails to singletrack. It's ideal for riders who want a mountain bike with knobby tires that can double as a rugged commuter. Disc brakes, front suspension, Shimano 14-speed shifting, and mounts for a rack and fenders make this a great bike for trail riders and campus commuters alike.
| Frame | Alpha Silver Aluminium, internal routing, chainstay disc-brake mount, rack and kickstand mount, 135x5 mm QR |
|---|---|
| *Fork | Size: XS SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travel |
| Size: S SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel |
|
| Size: M , ML , L , XL SR Suntour XCE 28, coil spring, preload, 46mm offset for 29'' wheel, 100mm QR, 100mm travel |
|
| Max compatible fork travel | 100mm (XS & S: 490mm axle-to-crown, M & up: 509mm axle-to-crown) |
| Skewer rear | 152x5mm QR |
|---|---|
| Max tire size | Frame: 29x2.20" (XS & S: 27.5x2.40"), Fork: See manufacturer |
| *Shifter | Size: XS , S , M , ML , L , XL Shimano EF500, 2 speed |
|---|---|
| Size: XS , S , M , ML , L , XL Shimano Altus EF500, 7 speed |
|
| Front derailleur | Shimano Altus M315, 34.9mm clamp, top swing, dual pull |
| Rear derailleur | Shimano Tourney TY300 |
| *Crank | Size: XS , S , M ProWheel TM-CY10, 36/22, 170mm length |
| Size: ML , L , XL ProWheel TM-CY10, 36/22, 175mm length |
|
| Bottom bracket | VP BC73, 73mm, threaded cartridge |
| Cassette | Shimano TZ500, 14-34, 7 speed |
| Chain | KMC Z7, 7 speed |
| Pedal | VP-536 nylon platform |
| Max chainring size | 1x/2x: 34T, 3x: 42T |
| Saddle | Bontrager Verse Short, stainless steel rails |
|---|---|
| *Seatpost | Size: XS , S Bontrager alloy, 31.6mm, 12mm offset, 330mm length |
| Size: M Bontrager alloy, 31.6mm, 12mm offset, 360mm length |
|
| Size: ML , L , XL Bontrager alloy, 31.6mm, 12mm offset, 400mm length |
|
| *Handlebar | Size: XS , S Bontrager alloy, 31.8mm, 5mm rise, 690mm width |
| Size: M , ML , L , XL Bontrager alloy, 31.8mm, 15mm rise, 750mm width |
|
| Grips | Bontrager XR Endurance Comp, lock-on |
| *Stem | Size: XS , S Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length |
| Size: M Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length |
|
| Size: ML , L Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 70mm length |
|
| Size: XL Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 80mm length |
|
| Headset | Semi-integrated, 1-1/8" |
| *Brake | Size: XS , S , M , ML , L , XL Tektro MD-M280 mechanical disc |
| Size: XS , S , M , ML , L , XL Tektro MD-M281 mechanical disc |
|
| Brake rotor | Tektro, 6-bolt, 160mm |
| Weight | M - 14.60 kg / 32.19 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
