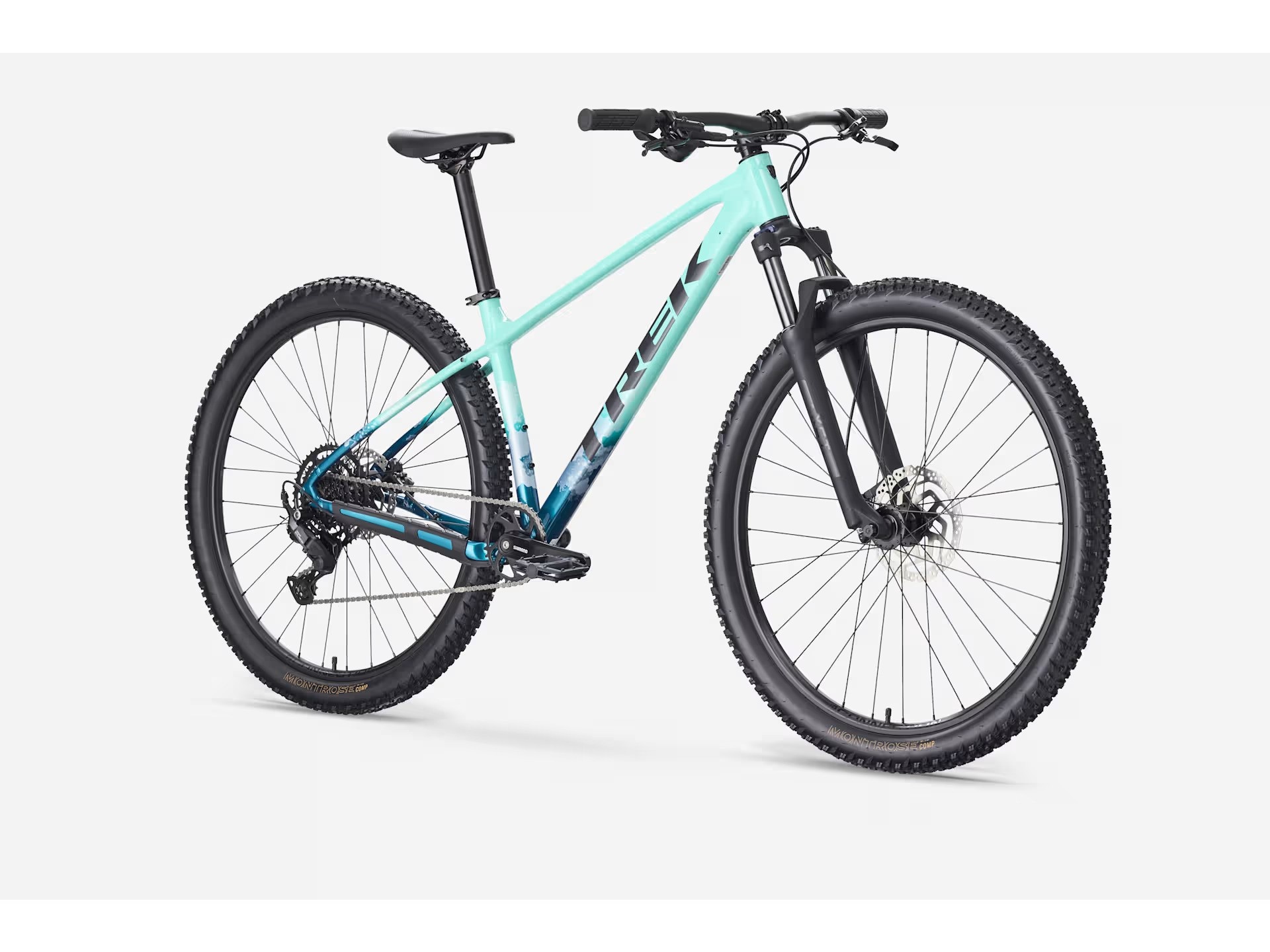

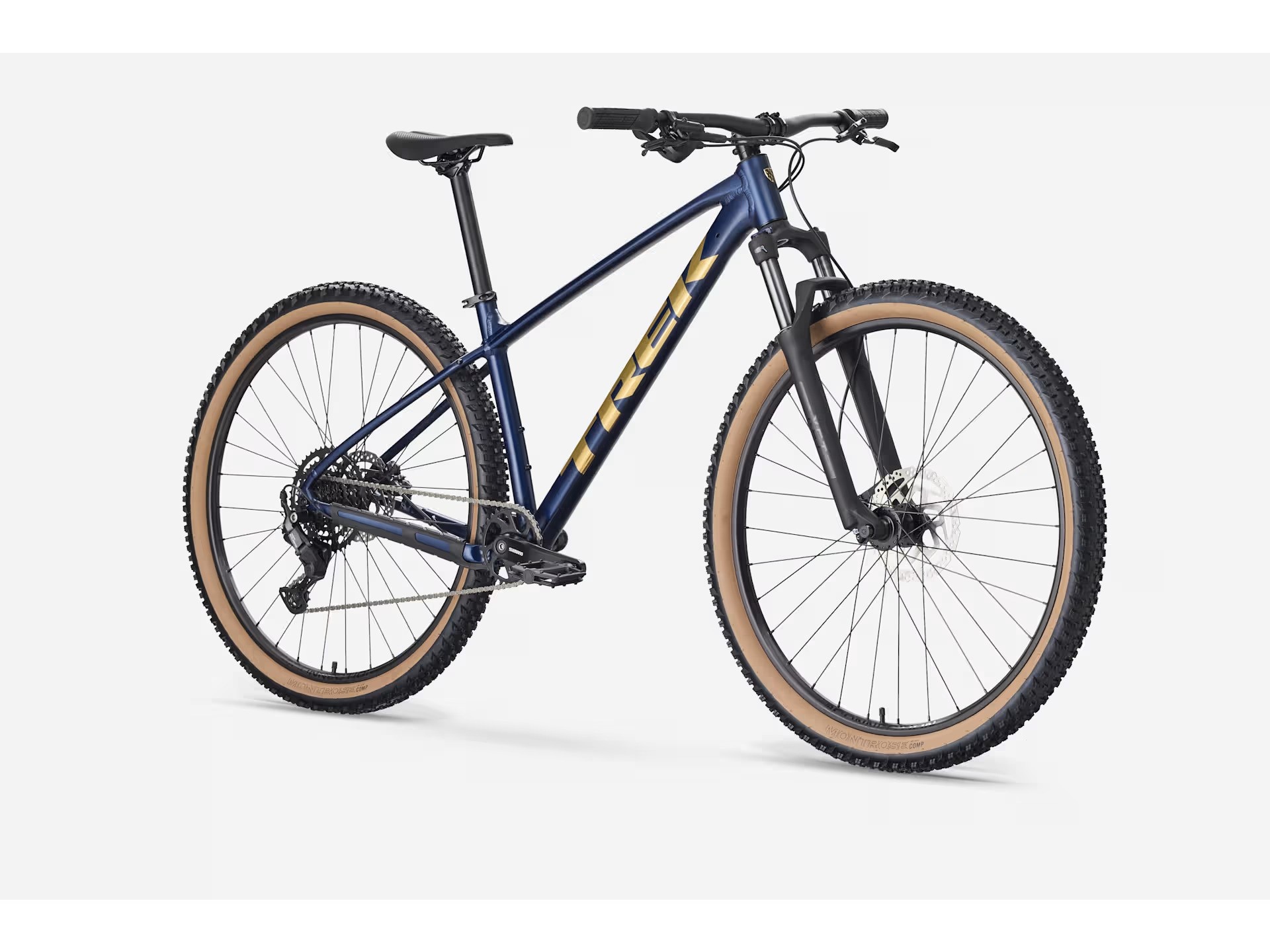

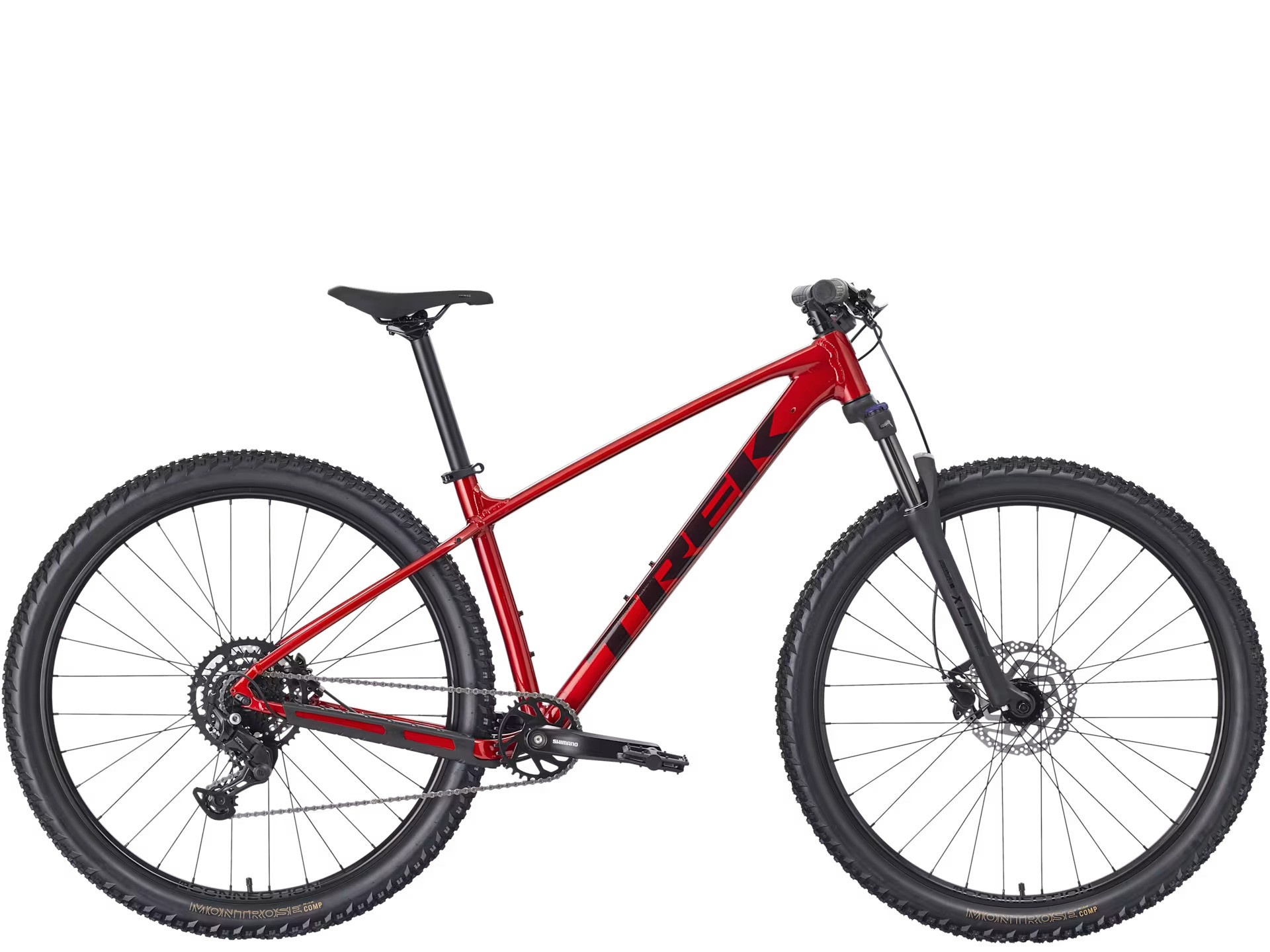

Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. It features a trail-savvy frame with a suspension fork, 9-speed Shimano CUES shifting, and mounts for a rack and kickstand that make it an ideal choice for trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.
- *Frame
-
Size: XS
Alpha Silver Aluminum, curved top tube, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
Size: S , M , ML , L , XL , XXL
Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
- *Fork
-
Size: XS
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel
Size: S
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel
Size: M , ML , L , XL , XXL
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 29" wheel, 100 mm QR, 100 mm travel
- Hub front
-
Formula DC-20, alloy, 6-bolt, 100x5mm
- Skewer front
-
- Hub rear
-
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm
- Skewer rear
-
- Rim
-
Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve
- Spokes
-
14g stainless steel, black
- *Tire
-
Size: XS , S
Bontrager Montrose Comp, wire bead, 30 tpi, 27.5x2.4''
Size: M , ML , L , XL , XXL
Bontrager Montrose Comp, wire bead, 30 tpi, 29x2.4''
- Shifter
-
- Rear derailleur
-
- *Crank
-
Size: XS , S , M , ML
Shimano CUES U4001, 32T, 52mm chainline, 170mm length
Size: L , XL , XXL
Shimano CUES U4001, 32T, 52mm chainline, 175mm length
- Bottom bracket
-
Shimano, 73mm, threaded cartridge, 122.5mm spindle
- Cassette
-
Shimano LINKGLIDE LG300, 11-46, 9 speed
- Chain
-
- Pedal
-
- Saddle
-
- *Seatpost
-
Size: XS , S , M
Bontrager alloy, 31.6mm, 12mm offset, 330mm length
Size: ML , L , XL , XXL
Bontrager alloy, 31.6mm, 12mm offset, 400mm length
- *Handlebar
-
Size: XS
Bontrager alloy, 31.8mm, 5mm rise, 690mm width
Size: S
Bontrager alloy, 31.8mm, 15mm rise, 720mm width
Size: M , ML , L , XL , XXL
Bontrager alloy, 31.8mm, 15mm rise, 750mm width
- Grips
-
- *Stem
-
Size: XS , S
Bontrager Comp, 31.8mm, 7 degree, 35mm length
- Headset
-
- Brake
-
Shimano MT200 hydraulic disc
- *Brake rotor
-
Size: XS , S , M , ML , L , XL , XXL
Shimano RT26, 6-bolt, 160mm
Size: M , ML , L , XL , XXL
Shimano RT26, 6-bolt, 180mm
- Brake Set
-
- Weight
- M - 15.10 kg / 33.29 lbs
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
